Trafalgar FyreWrap

No items found.

FyreWrap is the leading passive fire protection solution for commercial ductwork. The lightweight Insulfrax core ensures high temperature insulation and performance. Fibreglass reinforced scrim completely encapsulates the core for additional handling strength, tear resistance and antibacterial resistance.

Due to its fast clean and easy nature, Trafalgar Fire’s FyreWrap is now approved for use in the protection of steel pipe hangers and brackets, and copper hydrant pipes in non-sprinklered fire compartments within a building. The FyreWrap system is simple to install and provides safe and compliant protection in a range of applications to meet AS2419 requirements to prevent the early collapse of hydrant systems.

FyreWrap features

  • Lightweight – up to five times lighter than traditional fire spray
  • Clean and easy installation – no mesh required
  • Greenguard listed for microbial resistance
  • No masking required
  • Quick and efficient construction
  • Simple repair – tape up or replace section
  • Seismic and vibration tolerant
  • Tested and approved in accordance with AS 1530.4-2005 and AS/NZS 1530.4-2014
  • Flexible material for easy installation
  • Secured simply with steel cable ties
  • Greenguard listed for microbial resistance
  • Compliant to AS2419 for steel pipe hanger and support protection
  • Compliant to AS2419 for copper hydrant protection

FyreWrap applications

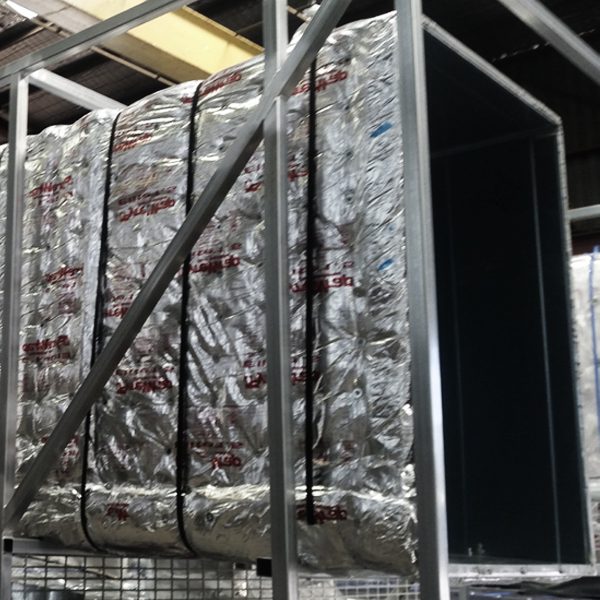

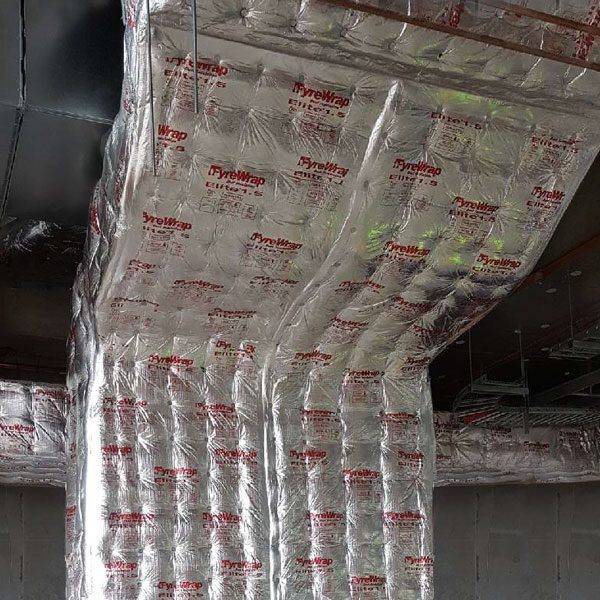

Ductwork

FyreWrap is the leading passive fire protection solution for commercial ductwork. The lightweight Insulfrax core ensures high temperature insulation and performance. Fibreglass reinforced scrim completely encapsulates the core for additional handling strength, tear resistance and antibacterial resistance.

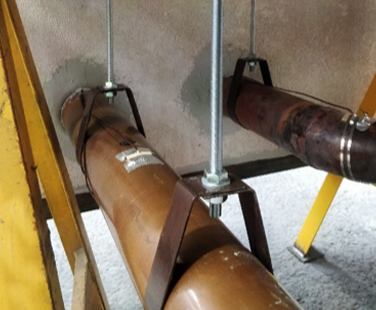

Hydrant pipe protection systems

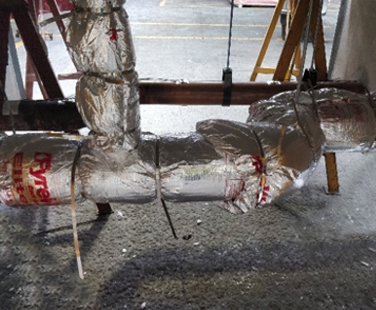

Due to its fast clean and easy nature, Trafalgar Fire’s FyreWrap is now approved for use in the protection of steel pipe hangers and brackets, and copper hydrant pipes in non-sprinklered fire compartments within a building. The FyreWrap system is simple to install and provides safe and compliant protection in a range of applications to meet AS2419 requirements to prevent early collapse of hydrant systems.

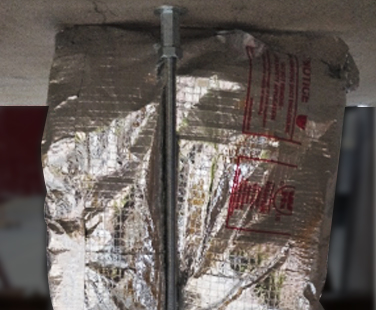

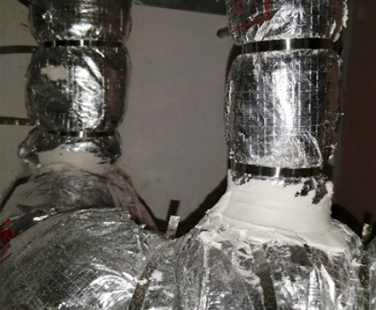

AS 2419.1-2017 requires that where fire hydrant system pipework is likely to be exposed to fire in a building that is not sprinkler protected, the pipe supports shall have measures taken to prevent its early collapse when exposed to fire (per section 10.4.1). To meet this requirement, Trafalgar Fire has engaged expert fire safety engineers to assess the performance of the FyreWrap Systems.

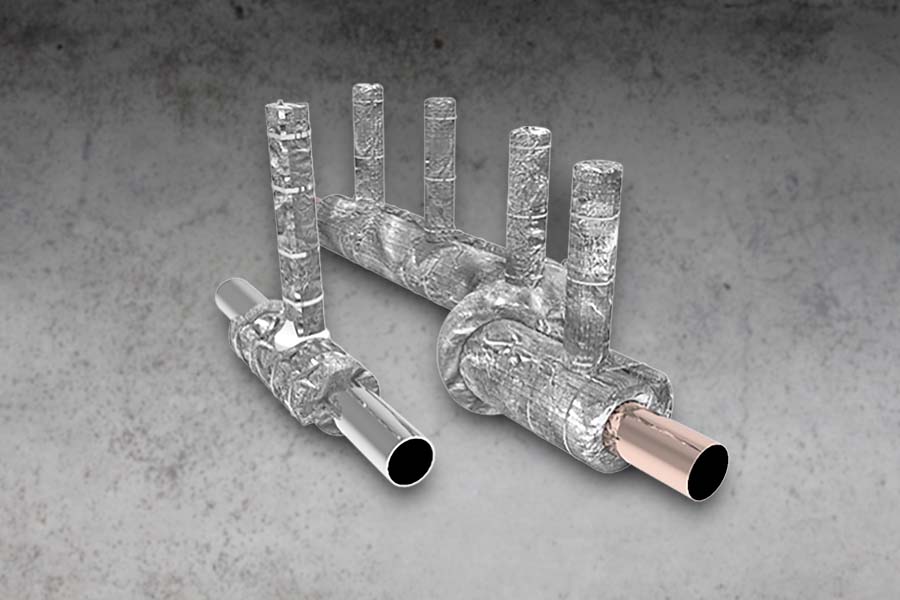

  • DN100 Copper hydrant protection
  • Up to NB150 steel pipe hanger, supports and bracket protection
  • Other applications such as duct protection

Wall and floor penetrations using fire-rated mortars

Wall and floor penetrations can also be sealed off with either plaster-based or cement-based, fire-rated mortars.

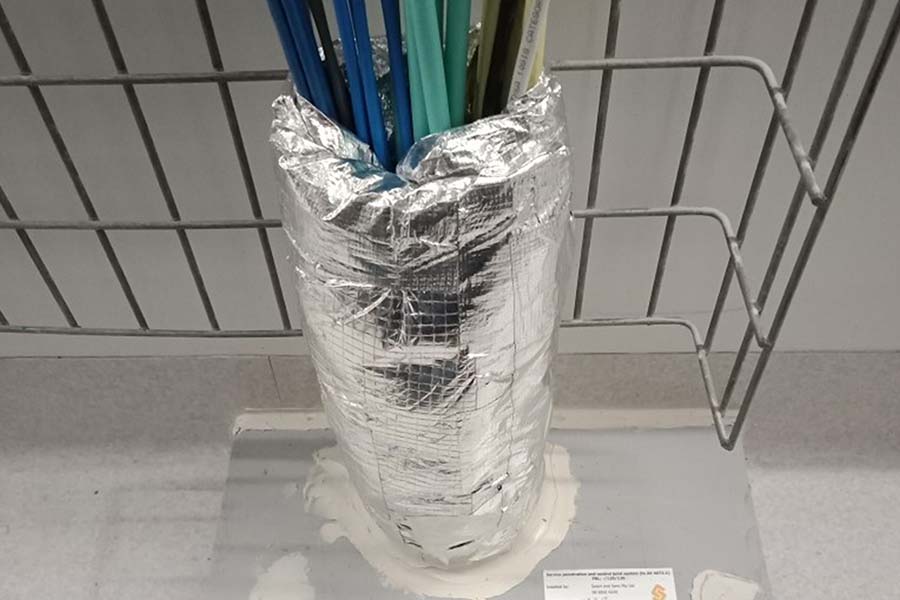

Floor penetration using Maxilite board, Fyrewrap and Fyreflex sealant with a -/120/120 fire rating at the new Calvary Hospital

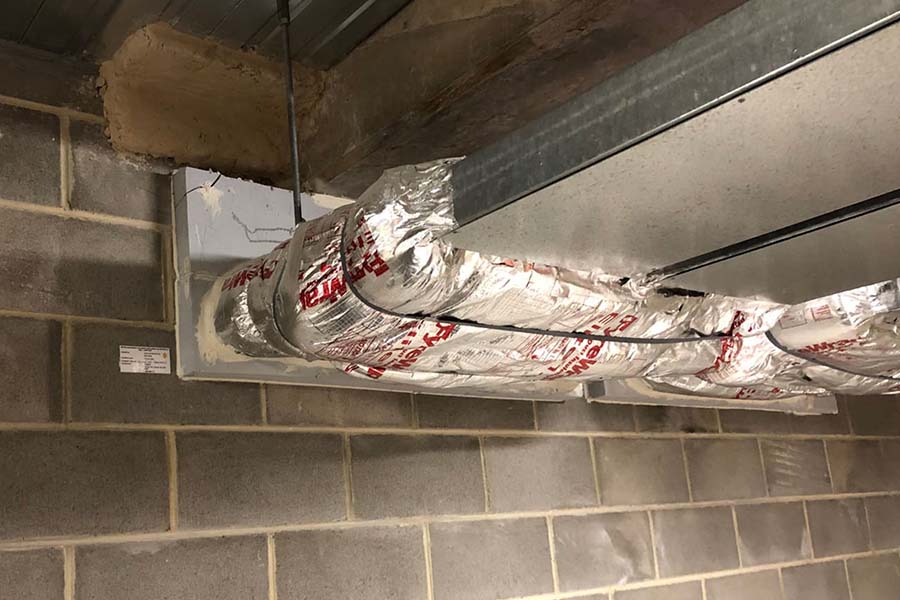

Wall and floor penetrations using fireproof wraps

Wall penetration using Trafalgar FyreBox, FyreWrap and Fyreflex sealant that has achieved a -/240/240 fire rating at the new Calvary Hospital


How to Install FyreWrap - Wrapping and Overlaps

FyreWrap internal fire test report FCO-3226 Rev E

download

FyreWrap external fire test report FAR 4205

download

FyreWrap data sheet

download

FyreWrap for hydrant pipe hanger protection test report

download

FyreWrap hydrant pipe protection systems technical manual

download

FyreWrap technical manual

download

See case studies of projects that use this product
